Safe communication
in central and decentralized installations thanks to drive technology with safety options that are either integrated or can be expanded as part of a modular system.
Integral communication
between all levels of the system architecture as well as between the actual drive technology components.

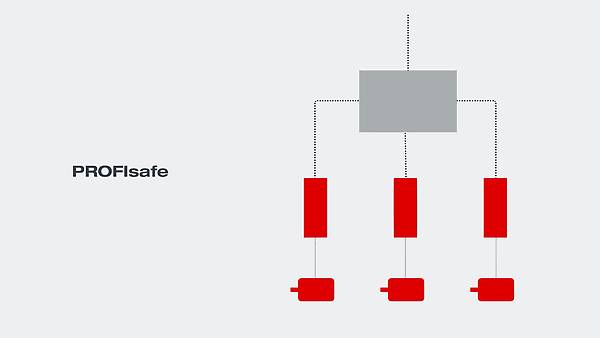

The PROFIsafe profile is currently synonymous with safe communication: It gives your systems and automation concepts the functional safety you want and need.
All of our drive components, both mechanical and electronic, speak the “PROFIsafe” language. The components speak this language between themselves and also for communication with the control level.
Therefore, place your trust in the technology of one of the world’s leading manufacturers of drive technology and make use of the communication capabilities of our components. You can do this whether your machine or system is installed centrally or decentralized. And of course, it also available worldwide.
Overview of our PROFIBUS-capable drive technology with MOVISAFE® safety options that are either integrated or can be expanded as part of a modular system:
Inverter technology
Decentralized drives
| Safety functions | Drive electronics | Option card | Communication/control |
|
| MOVISAFE® DFS11B/21B Stop monitoring | PROFIsafe via
|
| for MOVIDRIVE® B drive inverters (sizes 1 to 7) | MOVISAFE® DCS21B Motion and position monitoring | PROFIsafe via
|
| for MOVIDRIVE® B drive inverters (sizes 1 to 7) | MOVISAFE® DCS22B Motion control | PROFIsafe via
|
| for MOVIDRIVE® B drive inverters (sizes 1 to 7) | MOVISAFE® DCS31B Motion and position monitoring | - |
| for MOVIDRIVE® B drive inverters (sizes 1 to 7) | MOVISAFE® DCS32B Motion control | - |
| Safety functions | Drive electronics | Safety module | Communication/control |
| For our complete inverter range:
| Safety module UCS10B/PS | PROFIsafe via
|
| - | Safety module UCS11B/PS | - |
| - | Safety module UCS12B/PS | - |
| - | Multi-axis logic modules UCS50B & UCS51B | Multi-axis logic modules UCS50B/PS + UCS51B/PS |
| Safety functions | Drive electronics | Safety module | Communication/control |
| Safe control/safe operation? | MOVIMOT® gearmotors with integrated frequency inverter with field distributor MQS../Z.6F with integrated MOVIMOT® inverter of the type MQS../Z.7F | via PROFIsafe on PROFIBUS | |
| MOVIFIT® MC or FC decentralized drive controller with integrated functional safety | With MOVISAFE® S12 option S12A variant
| Via PROFIsafe with MOVISAFE® S12 option |
| Decentralized installations with a decentralized drive, positioning or application controller
| With integrated MOVISAFE® option S11: This option comes equipped with 4 safety-related inputs for connecting safe sensors and two safety-related outputs | Via PROFIsafe with the MOVISAFE® S11 option |
| Specific MOVIPRO® design with functional extensions as drive controller and control panel for MAXOLUTION® system solutions | MOVISAFE® HM31 decentralized safety controller | Safe communication:
|
Safe communication can be used horizontally as well as vertically in all machine and system structures, regardless of whether it is for central or decentralized installation concepts.
